LCDwiki ES3C35P

NanoGig Screen's gig view at 480×320 — NanoGig Screen on this board, 480×320.


Board ID	`es3c35p`
Display	3.5”, 480×320, used in landscape
Touch	Capacitive
Chip	ESP32-S3 (16 MB flash, 8 MB PSRAM)
Status	Tested on a pedal

A sharper, larger screen than the CYD, with capacitive touch that reacts to a light tap. NanoGig Screen uses the extra room for bigger type and more on each page.

Tested on the bench in October 2026: picture, colours, touch and the pedal connection all work.

Which version to buy

Look for the model number ES3C35P from LCDwiki: the 3.5” ESP32-S3 version with capacitive touch, 16 MB flash and 8 MB PSRAM (N16R8).

Power and cable

5 V over its USB-C socket. A USB cable that carries data is also what the web installer needs.

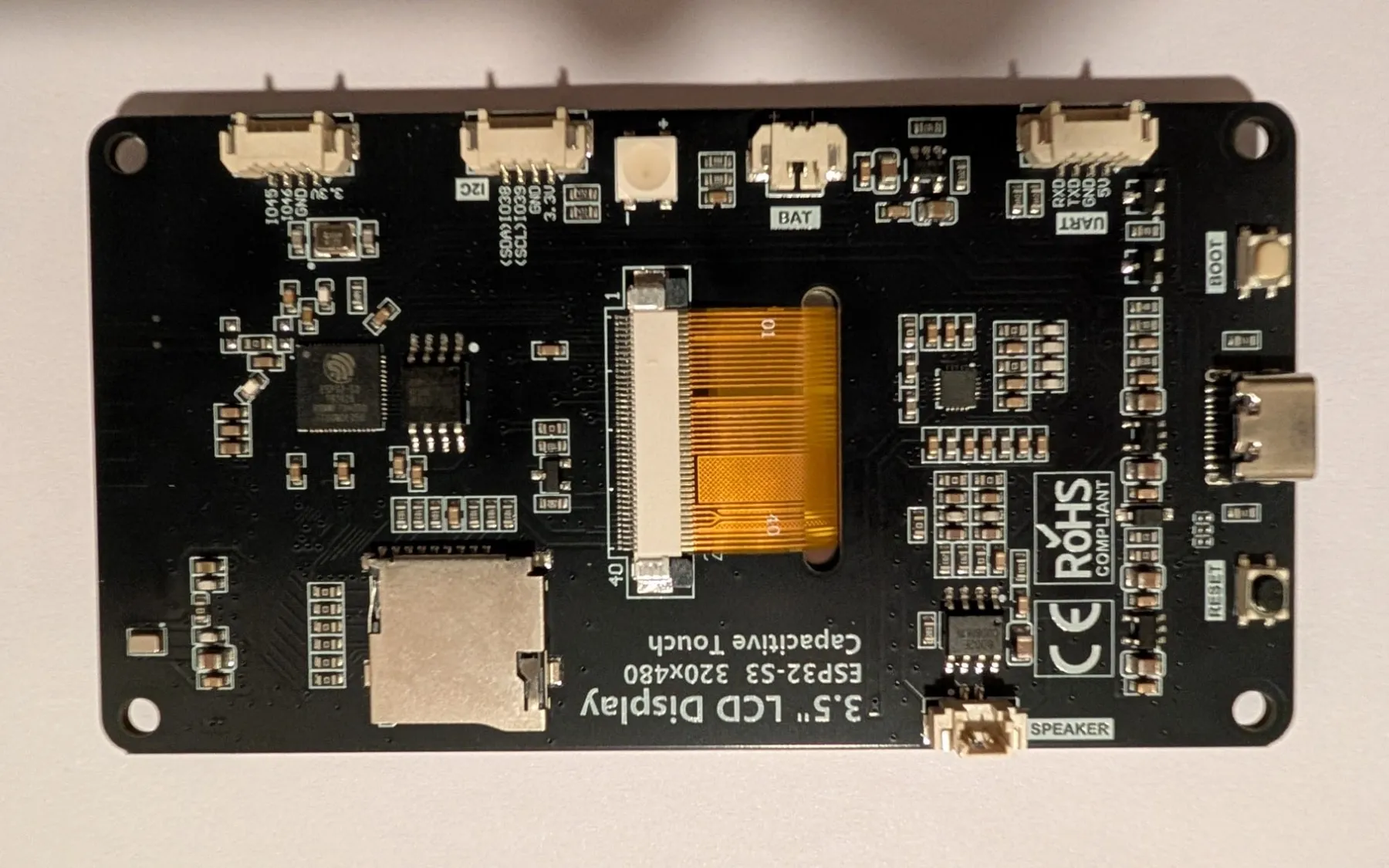

The back of the ES3C35P: the USB-C socket on the right edge, with the BOOT button above it and RESET below

The socket is on the back, at the right edge. BOOT and RESET, the two buttons beside it, are the ones to use if the installer can’t reach the board (see Getting started).

Updates

It updates over Wi-Fi like the other boards: see Updating.
